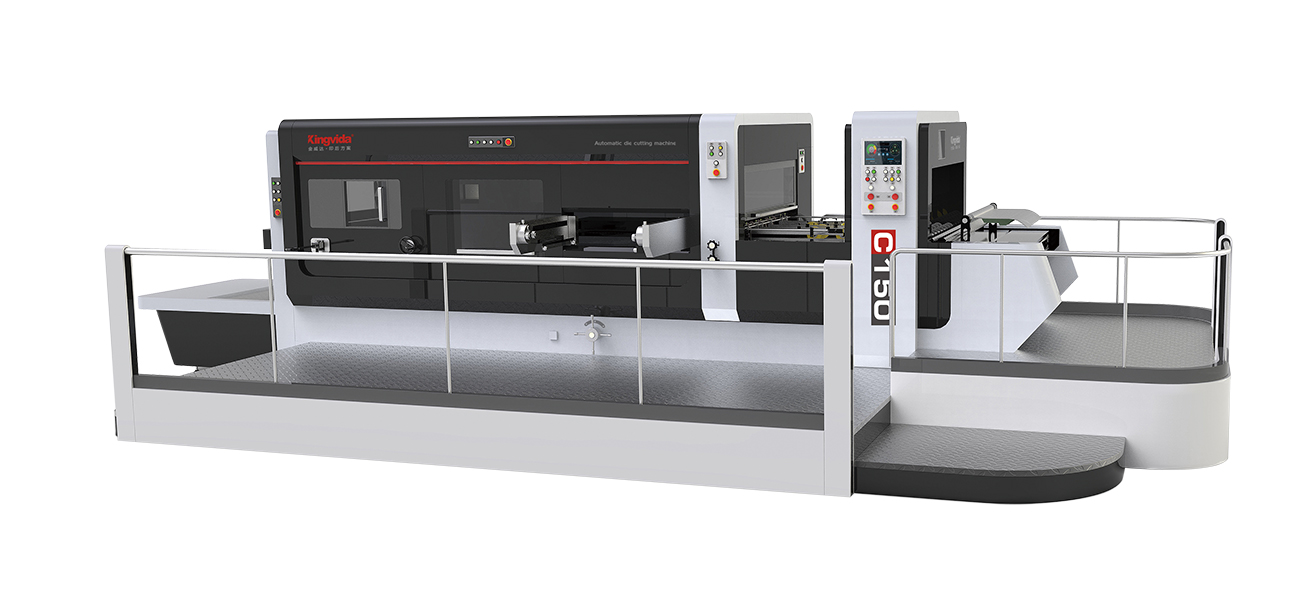

C150

Full-automatic die-cutting&creasing with stripping station

Features
  • Servo control paper feeding

    The uniquely designed leading edge paper feeding technology device adopts a non-stop downward suction leading edge paper feeding method, which overcomes the warpage of the cardboard caused by the difference in the number of grams of paper in the surface of the temperature and humidity, and makes the paper feeding more smoothly;The machine's unique servo paper feeding system improves the accuracy of paper placement, and the unique motion control program completely eliminates the phenomenon of scratching. The side flapper device keeps the correct position of the paper stack when feeding the paper. Only input the size of the paper, and the feeding wheel can send the paper completely.

  • Paper positioning and conveying section

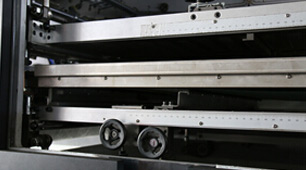

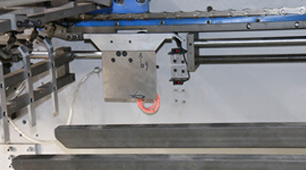

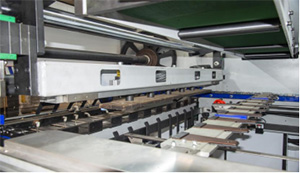

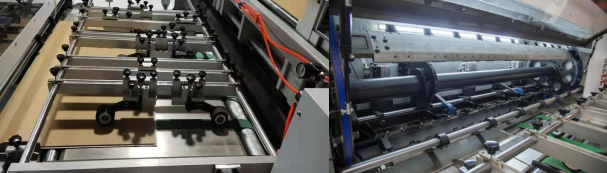

    The paper conveying adopts high-power servo drive, and is equipped with a unique curved motion track to ensure accurate paper in place.Phase adjustment PLC control is more precise. Side positioning push gauge, one set on each side. There is a large choice of reference surface to ensure the positioning accuracy of the paper side feeding. The front gauge and the side gauge are designed with wide width, so that the laminated paper can be die-cut with high precision. The front gauge has a left and right gripper fine-tuning device, which can be aligned with the rule simply by turning the hand-wheels. The unique upper and lower front gauges cooperate with the gripper mechanism to ensure that the warped paper can be transferred smoothly and die-cutting accuracy. The gripper bar adopts aluminum-magnesium alloy profile, which has high strength and does not deform. All screws and nuts of the gripper adopt standard anti-loosening screws and nuts. Imported conveyor chain, high-strength oil-containing nylon chain guide plate and drip-type automatic lubrication device, high speed and low noise.

  • Main drive

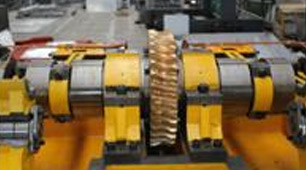

    The main drive adopts a worm gear pair and a specially designed crankshaft connecting rod mechanism, which has the characteristics of low noise, high pressure, high precision and long mechanical life. The worm wheel, worm and crankshaft are all processed by CNC grinding. The combined transmission of ternary gears is durable.The main machine body, upper and lower die-cutting platforms are all made of high-grade ductile iron materials and aging treatment. It has the characteristics of wear resistance, large mechanical flat pressure, and low deformation coefficient.The main drive lubrication adopts oil-immersion type and imported high-pressure gear pump uninterrupted lubrication method. The oil circuit is equipped with an organic oil filtering and cleaning device and an abnormal oil pressure protection device to ensure that the inside of the machine is always new. The clutch adopts a large-torque pneumatic clutch, which has fast response speed and large torque, and the actions such as start, emergency stop, and inch move are accurate, and it does not require maintenance and has a long life.

  • Die cutting department

    ØThe die-cutting plate adopts four-claw nut fastening type installation to ensure that the large-format die-cutting plate is always flat, and equipped with a pneumatic plate locking device, which effectively reduces the preparation time for plate change.
    ØThe steel plate adopts quenched manganese alloy steel material, which has extremely long life. The steel plate pneumatic suspension device ensure plate can be easily loaded and unloaded.
    ØElectric adjustment of die cutting pressure is more convenient and quick.
    Ø 350 tons of pressure, whether corrugated paper or thick board paper is easily to die-cut.
    ØAutomatic control of loose plates, paper falling, etc., to realize humanized automation of mechanical operation.
    ØWorm gear crank toggle type high precision plane die-cutting table.
    ØFixed high-precision flat die cutting upper worktable.
    Ø Brand pneumatic clutch/brake.
    ØThe latest technology multi-piece cam intermittent transmission mechanism.
    ØHigh-precision imported gripper gear transmission chain.

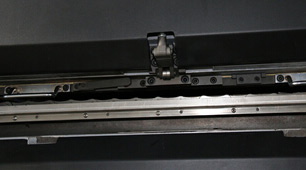

    Ø 7 paper gripper bars, each with 11 (imported spring steel plates) grippers and matching gripper pillows.
    ØThe tooth row is pre-positioned to ensure correct and consistent step positioning.
    ØThe paper inlet and paper outlet are equipped with electric detector, and the paper is in place and the paper width detection response is quick.
    ØThe template is installed with a central positioning system, which makes it quick and easy to change the plate.
    ØElectronic fault and speed display.
    Using automatic plate locking mechanism and positioning system between plate frames: the plate turning device is flexible, safe and reliable. The plate frame adopts a pneumatic locking device, and there is no blower under the die-cut steel plate.

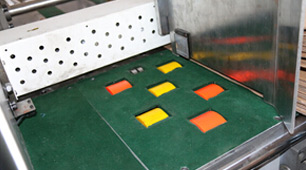

  • Stripping Department

    ØUpper and lower two frame quick clamping devices and adopt central positioning system (interchangeable and compatible with international standard molds), easy to change plate.
    ØThe upper frame is separated by the cylinder lifting control.
    ØThe central positioning system is adopted for the bottom stripping template fixing machine, which is easy to operate.
    ØThe front stripping function adopts the central positioning system to remove the paper edge in the machine at one time

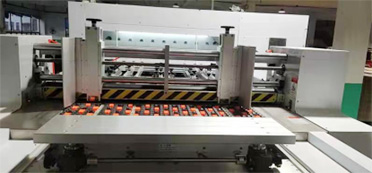

  • Collection Department

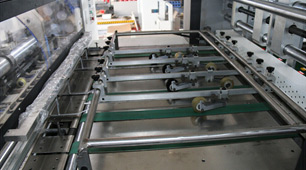

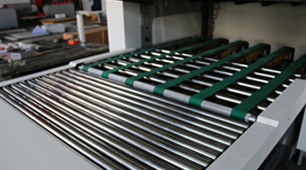

    ØLinear bearings are used for paper delivery and angly, with simple structure and neat paper delivery.
    ØAutomatic paper stack lifting table and counting function, accurate collection of papers.
    ØReceiving paper without stopping to ensure that the whole machine does not stop running.
    ØThe output belt can quickly and conveniently transfer the paper pile to ensure that there is no scratches or garland in printing.
    ØAutomatic conversion of non-stop counting delivery and whole stack delivery.

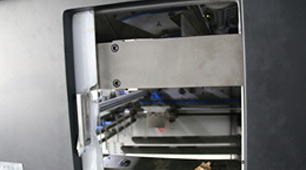

  • Observation window of the delivery department: You can clearly view the operation status of the cardboard after the waste is removed, which is convenient and quick to adjust.

  • The aligning device on the front and rear sides: it can automatically arrange the products, the cylinder type automatic non-stop paper stacking device, and the paper can be continuously recycled.

  • Electrical Control Department

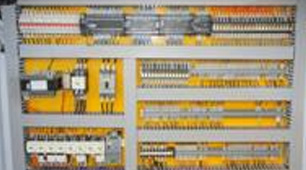

    ØThe whole machine adopts the overall solution of Japanese IDED company, central high-speed PLC control, touch screen parameter setting and real-time communication monitoring, stable and convenient for maintenance.
    Ø display failures and solutions.
    ØCE standard safety protection device and warning device to ensure the safety of man and machine.
    ØThe main motor adopts high protection grade motor and imported frequency converter, and the power is never interrupted.

Product Parameter
paper application E, C, B, AB max. thickness≤9mm
Max. paper size 1510×1120mm
Min. paper size 450×550mm
Paper stack height 500mm
Receiving pile height 400/1100mm
Die cutting size 1480×1100mm
Inner size of board frame 1510×1130mm
Die-cutting steel plate size 1515×1120mm
waste paper edge >12mm
Gripper bite edge >8mm
Die cutting pressure 350T
Max. Speed 4500r/h
Total power 38KW
Voltage 380V
Machine net weight 25T

Gross weight

27T

Machine size

11470×5000×2600mm
Performance Performance characteristics

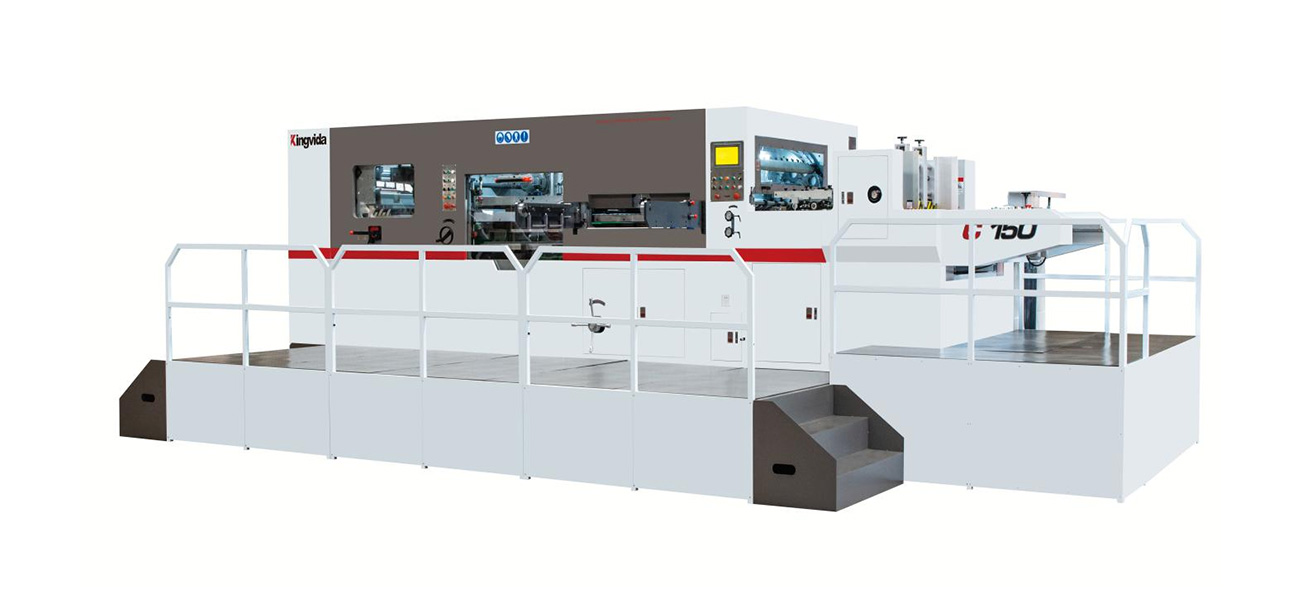

C150 machine is a special equipment for die-cutting of high-end color boxes , developed by our company in combination with the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Die-cutting pressure can be adjusted separately , manual turning is convenient and labor-saving, and can die-cutting without bit mouth.
