Paper feeding unit

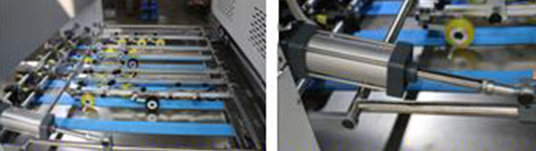

Uses four suction and five delivery big feeder head, can Smooth transport of thicker paper. Feeder driven by Fuji high precision servo and servo motion controller. Japan OMRON encoder tracking time is more accurate. Manual state can stop feeder action, reduce wear.
Feeder adjustment can be one-click adjustment according the paper size,convenient and time-saving.
When the paper is too warped, the paper can be manually feeding. The feeder can be adjusted to the end.
Multiple control panels to provide you with more convenience and speed.
Advanced push-pull guard, easy to adjust. Equipped fine adjustment,micro distance without stopping to handle. Push-pull interchangeable, convenient and fast.

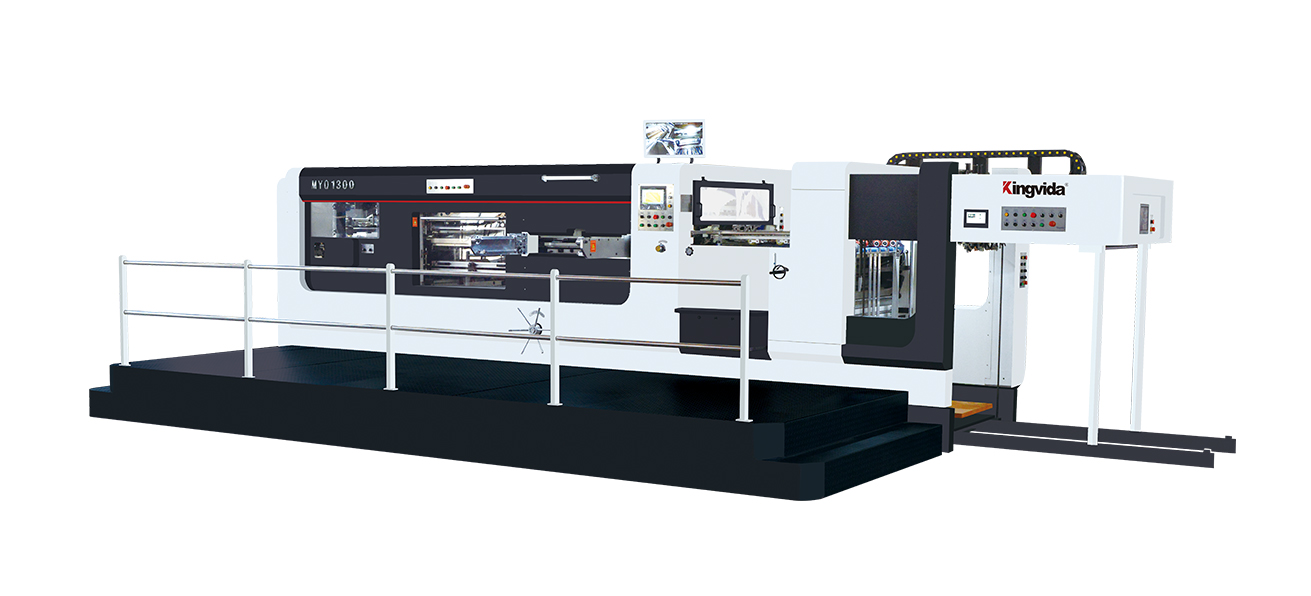

The Automatic Die Cutting and Creasing Machine creates the shape and foldability of the box or display. Several factors come into play when deciding on the right type of die cutter: substrate, speed, efficiency, and especially quality. Through sophisticated design and patented features, die cutters excel in performance, ease of use and accuracy.

Paper delivery unit

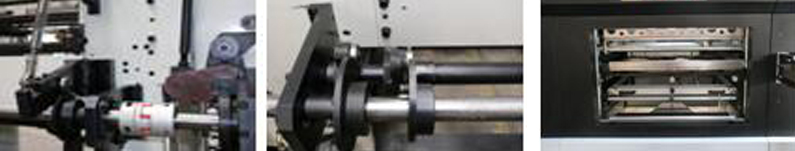

Adopts imported belt, high wear resistance, high friction. With the upper paper press wheel and brush wheel, can be suitable for a variety of paper and accurately sent paper to the place. Both sides of the push and pull gauges, ensure the die cutting more accurate.
Conveyance frame can be a key to improve the decline, reducing the labor force, simple and convenient.
The unique up - and - down front gauge cooperates with the gripper mechanism to ensure that the warped paper can be conveyed smoothly and the die cutting precision is guaranteed .

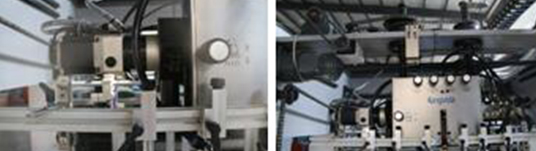

The front gauge has a fine tuning device in the left and right gripper mouth, simple rotation of the hand-wheel to adjust.
Equipped conveying and correcting device.
The front gauge and the side gauge are designed with wide width to make the mounting paper with high die cutting precision .

Automatic Die Cutting and Creasing Machine Main transmission

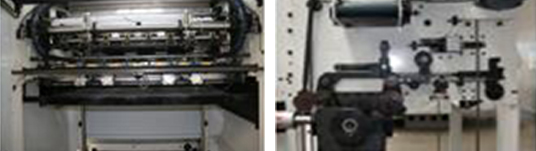

The machine adopts worm gear pair and specially designed crankshaft connecting rod mechanism. It has the characteristics of low noise, high pressure, high precision and long mechanical life. Worm gear pair and crankshaft are all numerical control lapping.
The machine main body and the upper and lower die cutting platform are all made of high grade ductile iron and treated by aging. It has the characteristics of high wear resistance, high die cutting pressure, low deformation coefficient and so on.
The main drive lubrication adopts the oil immersion type and the imported high pressure gear pump uninterrupted lubrication. Oil filter cleaning device and oil pressure abnormal protection device are installed to ensure that the mechanical interior is always new after several years.

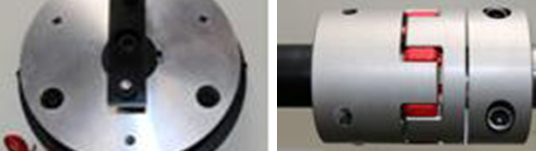

The clutch adopts large torque pneumatic clutch, which has fast reaction, so it can ensure machine start, stop, inch move accurately, and it does not need more maintenance, and has long life.
The knife plate is fixed by two ways: hanging and clamping.
320 super-ternary Cam Indexing Unit ensures the accuracy of die-cutting , more reliable and durable.

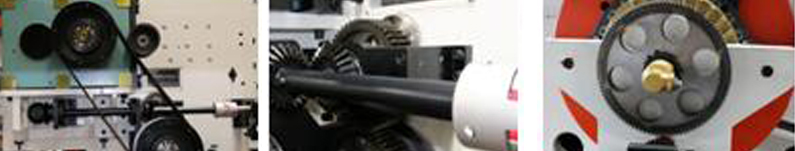

Large diameter synchronous belt wheel, US Gates ultra wide synchronous belt.
The main drive shaft is connected to the paper feed section, the stripper section, the paper collecting section. The main drive is changed to single shaft linkage. The structure is effective to ensure the machine service life and higher precision (avoid the problem of poor precision caused by the chain lengthening used in the same type of machine.) the mechanical deceleration hand-barring can save labor and safety.

The large diameter electromagnetic clutch also improves the positioning accuracy, avoid crash when the machine breaks down, replace torsion limiter, make it safer (similar models are torsion limiter protection,passive protection, can not fundamentally avoid collision).

Die-cutting unit

Plate adopt claw nut fastening.To ensure that the large format die cutting plate is always smooth, the clamping plate is flexible and convenient, and the pneumatic locking device is used to effectively reduce the preparation time for changing the plate.
The steel plate is quenched with manganese alloy steel, which has a long life. The pneumatic suspension device steel plate can easily unload.
Die-cutting pressure four-point adjustment, easy rotation handle can be adjusted.
300 T die cutting pressure , no matter cardboard ,corrugated paper , thick paper all easily die cut.
Die-cut paper or wast paper fall and other abnormal automatic control, realize the humanization and automation of mechanical operation.
Lower die cutting table with high precision of turbine, crank and toggle link connection type.
Upper die cutting table with stationary and high precision.

Stripping department

Top, middle and bottom three-frame fast clamping device and the use of central positioning system (international standard die interchangeable compatible) easy to change plate.

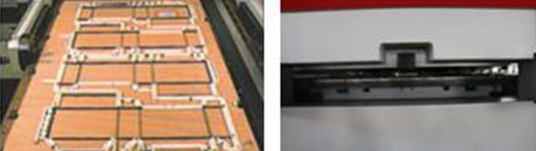

A central positioning system can be used to clear the edge of paper in the machine at one time.
The bottom frame adopts the waste cleaning needle, which is convenient for customers to replace.
The three frame type stripper is suit to the cardboard and corrugated paper, the clearing frame is placed horizontally, is convenient the operator to adjust the machine, so as to ensure the safety of the person.

Delivery unit

Three-sided paper aligning device, with a paper brush, so that the collection of paper more neat, easy to clear waste paper edge.
The paper collecting device is adjusted by motor. It is convenient and fast to apply to different size paper.
Paper stack lifting platform, mechanical limit, limit point can be forewarned direct control motor, safe and reliable.
The gripper bar chain can be adjusted by air pressure, which can meet the requirements of high and low speed. It can automatically unload the protection chain and prolong its service life when it does not work.
Open and gripper paper with pendulum and top rod type quiet stability.
The first and the second open and grip is adjusted by the independent cam, the adjustment is convenient, and the time interference is small.
The cylinder is imported form Taiwan.
The gripper bar pressure wheel adopts air pressure type, the pressure can be adjusted for better effect, and it is opened when replacing the front waste plate, so as to facilitate the replacement of the front waste plate.

Electrical department

The whole machine adopts integrated solution of Japanese IDED company , central high - speed PLC control , touch screen setting and real - time communication monitoring , stable and convenient maintenance , and prompt for fault solution.
CE standard safety protection device and warning device, guarantor machine safety.
The main motor adopts the high protection grade Siemens motor and the imported frequency converter, the power never stops.
Imported PLC, photoelectric switch, button service life longer, more stable performance.
Chengbang reducer motor is used to make the performance more stable.
The whole machine has multiple control button boards, more convenient and faster operation.
The computer automatic refueling system ensures the lubrication of all parts of the machine.
