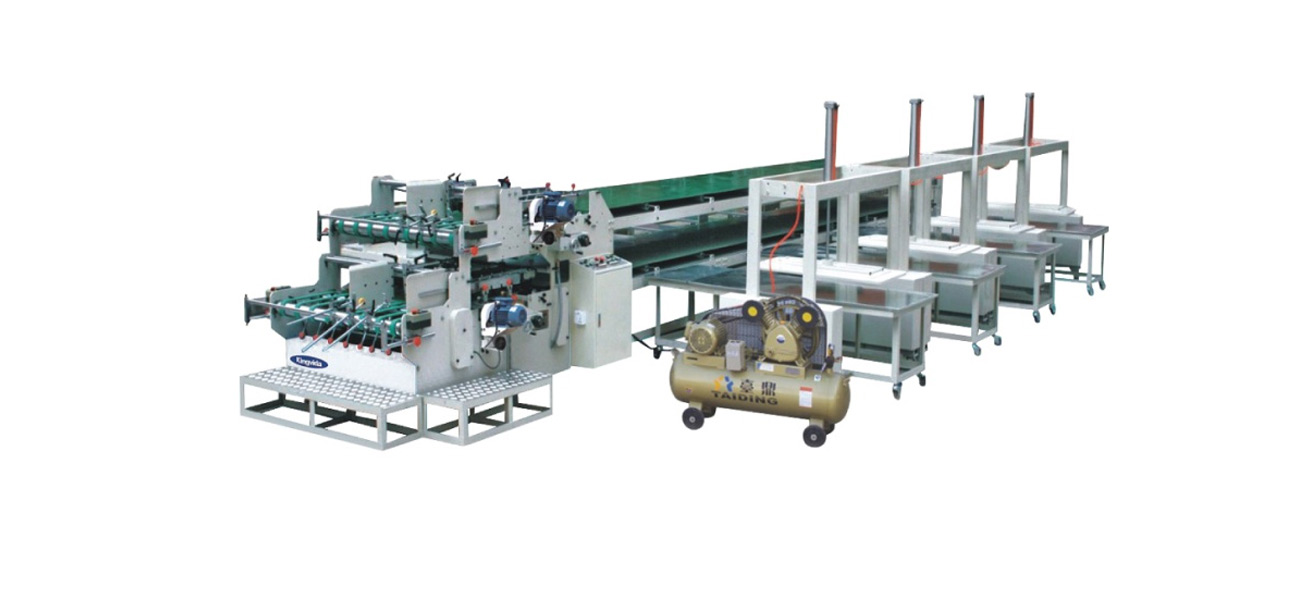

JWS-AB

Type semi-automatic folder gluer

Characteristics

The machine is specially designed for double-sheet type cartons. It can also glue single-sheet cartons, which is economical and practical. The machine has functions of automatic paper feeding, automatic edging and automatic gluing.Manual folding line, and is equipped with a large pressure cylinder press table. This machine can also apply to single-piece cartons, and is a practical tool for producing high-precision, high-demand cartons.

Parameter

JWS1300AB semi-automatic folder gluer

Model JWS1300
Max. size 1300*1100mm
Min. Size 260*180mm
Mechanical speed 70m/min
Mechanical power 5.5kw
Machine weight 4.8T
Dimensions 11200*3500*1700mm

JWS1500AB semi-automatic folder gluer

Model JWS1500
Max. size 1500*1100mm
Min. Size 260*180mm
Mechanical speed 70m/min
Mechanical power 5.5kw
Machine weight 5T
Dimensions 11200*3700*1700mm

JWS1800AB semi-automatic folder gluer

Model JWS1800
Max. size 1800*1100mm
Min. Size 260*180mm
Mechanical speed 70m/min
Mechanical power 5.5kw
Machine weight 5.5T
Dimensions 11200*3900*1700mm
