JAB

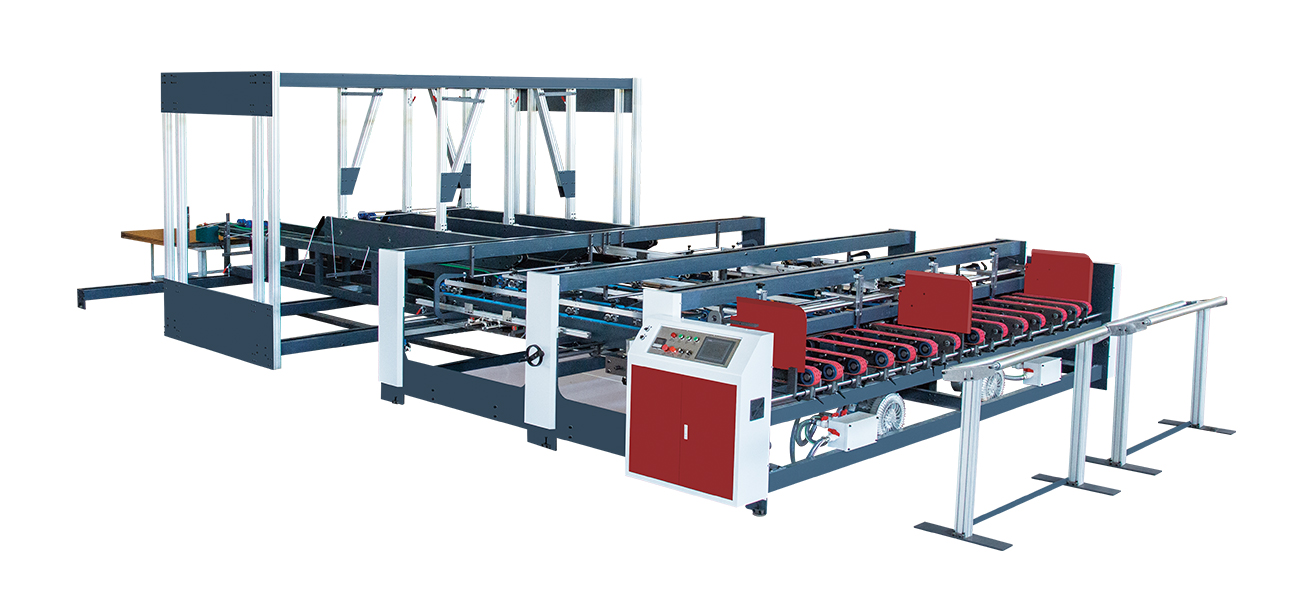

Two piece folder gluer

Characteristics
Parameter
Model 2600
Max.paper size 1300×1150mm
Min. paper size 460×300mm
Dimensions 11000×3600×1420mm
Mechanical power 11KW
Weight 5.8T
Mechanical speed 3000 pieces/hour

Model 3200
Max.paper size 1600×1600mm
Min. paper size 560×300mm
Dimensions 12000×4000×1420mm
Mechanical power 11KW
Weight 6.1T
Mechanical speed 2000 pieces/hour

Model 4500
Max.paper size 2250×2250mm
Min. paper size 650×300mm
Dimensions 12000×5300×1420mm
Mechanical power 11KW
Weight 6.5T
Mechanical speed 2000 pieces/hour
characteristics

The JAB series automatic two piece gluer added folding section basic the semi model, manually modify it to ensure the accuracy of gluing, reduce labor intensity and improve work efficiency.
