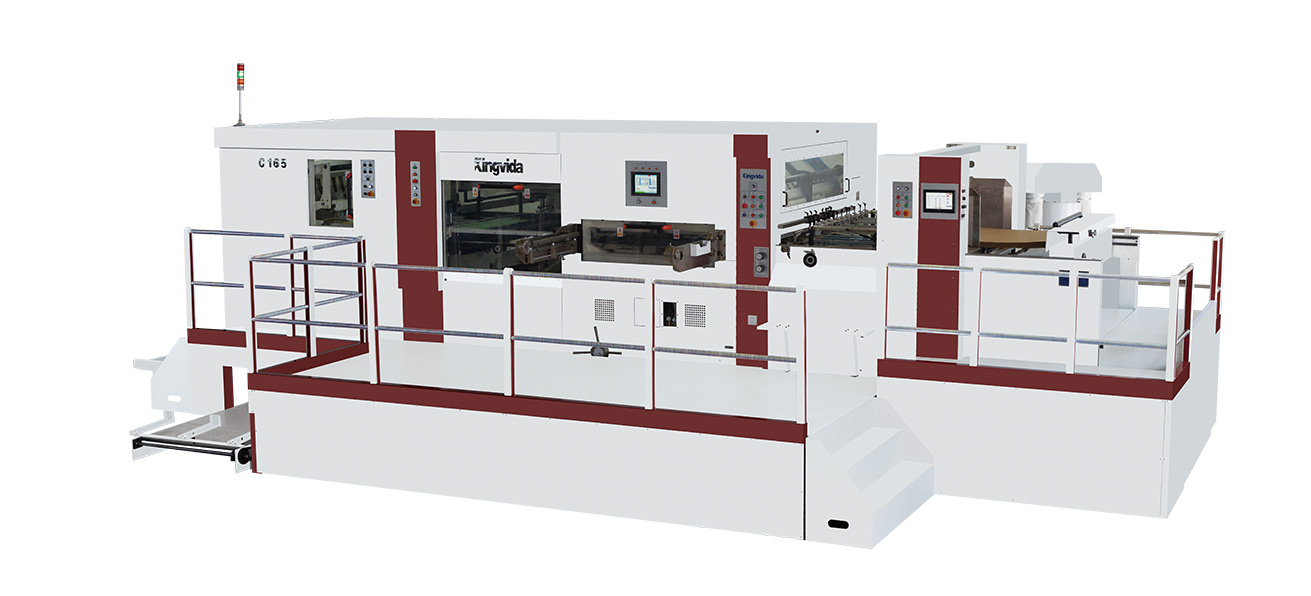

Front edge feed

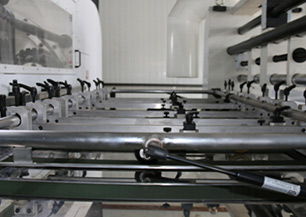

The front paper stopper blade can be adjusted up and down according to the thickness of the paper; the automatic adjustment of the two sides of the baffle can quickly adjust the width of the paper to be basically in place, and can also fine-tune the independent sitting position; the high-pressure blower is equipped with independent frequency conversion control of the air volume;The leading edge paper feeding device greatly increases the adaptability to paper. The high-speed precision leading edge paper feeding system can stably convey various types and qualities of corrugated paper, with strong adaptability and effective protection of scratches and scratches on the printing surface. The frequency conversion air volume adjustment and the paper feeding rubber wheel of special material can easily adapt to the paper feeding requirements from E flue to 5 layers of different corrugated paper, and ensure the smooth conveying of heavy warped cardboard and accurate cardboard in place.

Paper transport section

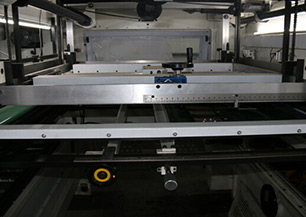

It has a professionally configured conveying deceleration mechanism, which can play a buffering role, protect the front edge of the cardboard from reaching the front edge of the paper, and ensure the accuracy of die-cutting; equipped with high-quality wear-resistant paper conveyor belts; a set of side positioning push gauges on both sides. Convenient adjustment and save time; advanced phase adjustment mechanism can adjust the paper delivery time without stopping the machine during operation, saving time and efficiency.

Paper Die Cutting Department

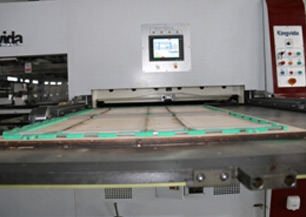

Crankshaft linkage type high-precision flat movable die-cutting worktable; high-stability upper flat fixed die-cutting worktable; perfect combination of main drive gear set and timing belt transmission, stable and durable; high-torque pneumatic clutch/brake; well-known brand The multi-disc cam intermittent transmission mechanism improves the service life of the machine; the high-quality torque clutch protects the INDEX from injury; the inclined pressure fine-tuning device, the overall adjustment pressure range is ±1.5mm; the high-precision imported gripper row transmission chain. The accuracy of the machine is guaranteed; the whole machine has 8 gripper rows, and is equipped with 12 movable grippers and supporting fixed tooth pillows; accurate pre-positioning of the tooth rows to ensure accurate and consistent step positioning; each paper detection electric eye , Monitor the whole process of paper, reduce unnecessary paper waste; central positioning system of template, easy and quick to change the version; large-screen electronic fault display and speed display, (color LCD) monitor the operation of the whole machine in time; mandatory for each part The lubrication system adopts cooling circulation device with oil pressure display and oil cut alarm device. The use of high-precision gears with the transmission form is stable, accurate, and durable; it reduces the instability caused by the previous chain transmission and belt transmission, which affects the accuracy and life of the whole machine. The high-quality high-torque cam divider drives the paper feeding teeth to make the operation more stable, reducing the phenomenon of loose plates in the die-cutting and waste removal process; and is equipped with a large-torque overload protection system to protect the machine from damage when overload occurs. The central positioning system used in the die-cutting frame conforms to international standards, making it easier and faster to change the knife plate. Save time for changing the version. When the die-cutting part of the gripper bar is to be stopped, the movable and fixed position is adopted to make the die-cut positioning more accurate.

Paper stripping station

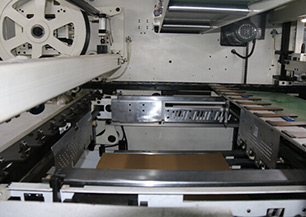

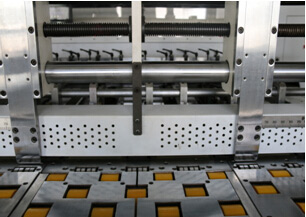

Two stripping frame quick clamping devices and central positioning system, (interchangeable and compatible with international standard molds), easy to change the plate; the central positioning system for fixing the bottom stripping template simplifies the operation process and improves work efficiency; The function completely removes the scraps from undercutting and sends them out of the machine. The pneumatic rotary opening mechanism on the operating side is more convenient to replace. Adopting a central positioning system, small plates, easy to adjust. And the whole set of waste removal device can completely remove the paper edge waste, and the paper edge is sent out of the machine by the conveying track. The upper frame of the waste removal is lifted by electric control, and the lifting height is nearly 400mm, which greatly increases the waste removal work space and facilitates various adjustments. The two editions are embedded, and the single edition is independent, effectively reducing the probability of dissemination when it is scrapped. Increase productivity.

Automatic Paper Collection Section

Automatic paper stack lifting platform; non-stop belt automatic paper delivery; high-quality stainless steel rollers can quickly transport the paper stack in place. At the same time, it prevents scratching; the left and right side push device ensures that the paper stack is tidy, and is equipped with an electronic counter that is set independently; it is convenient and fast to automatically take up paper without stopping the machine and output the paper stack.

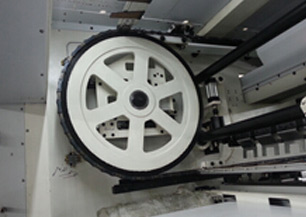

Main chain: The automatic chain tensioning device can always maintain the balanced tension of the chain during the working process, which greatly reduces the inertial impact when the gripper
bars on the arc, and the automatic pressure relief during shutdown can effectively extend the service life of the chain.

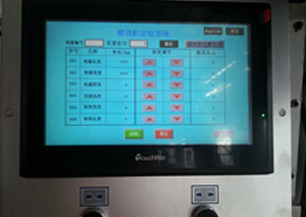

One-click positioning function: One-key positioning function: The unique paper adjustment memory system of this machine can store nearly 500 orders at the same time. Once each order record is saved, it can be automatically adjusted within one minute by pressing the key the next time it is used, without affecting other related operations at the same time, truly achieving one-key positioning, eliminating the tedious process of adjustment one by one , Reducing the requirements for cooperator, reaching the perfect state of interpersonal integration, and improving production efficiency.
